9m 5Tonne Center Supported Loading Ramps-JETI505090
Original price was: $17,149.00.$11,999.00Current price is: $11,999.00.

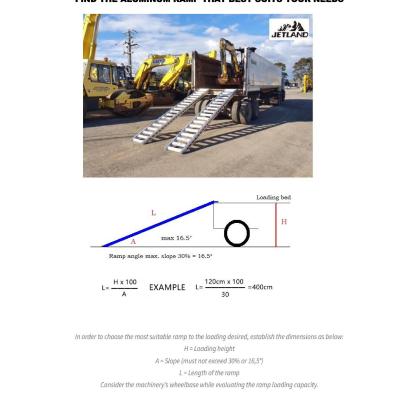

Find the ramp that best suits your needs
In order to choose the most suitable ramp to the loading desired, establish the dimensions as below:
H = Loading height
A = Slope (must not exceed 30% or 16,5°)
L = Length of the ramp
Consider the machinery’s wheelbase while evaluating the ramp loading capacity.
Choose a ramp with an internal width at least 5cm wider than the wheels or tracks of the loaded machinery.
Connection
Transition Plate and Safety Pin
Description

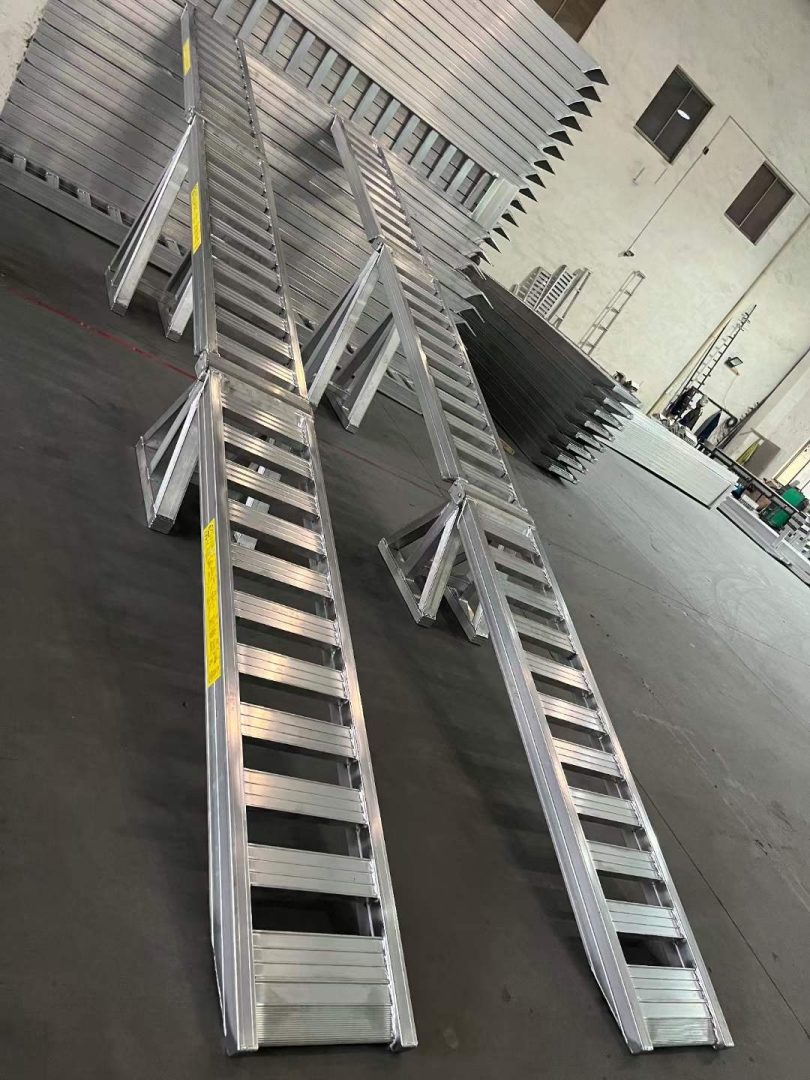

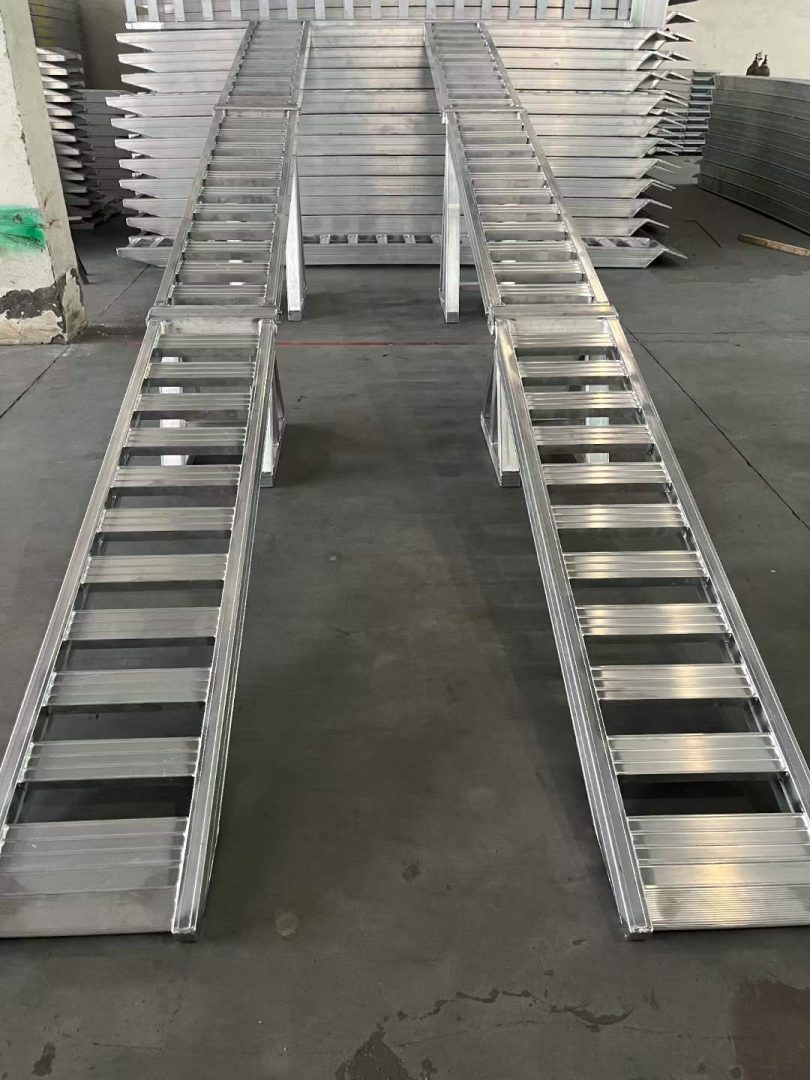

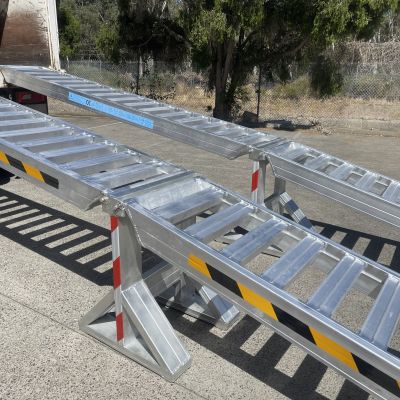

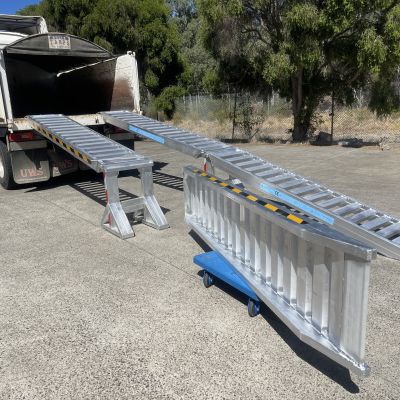

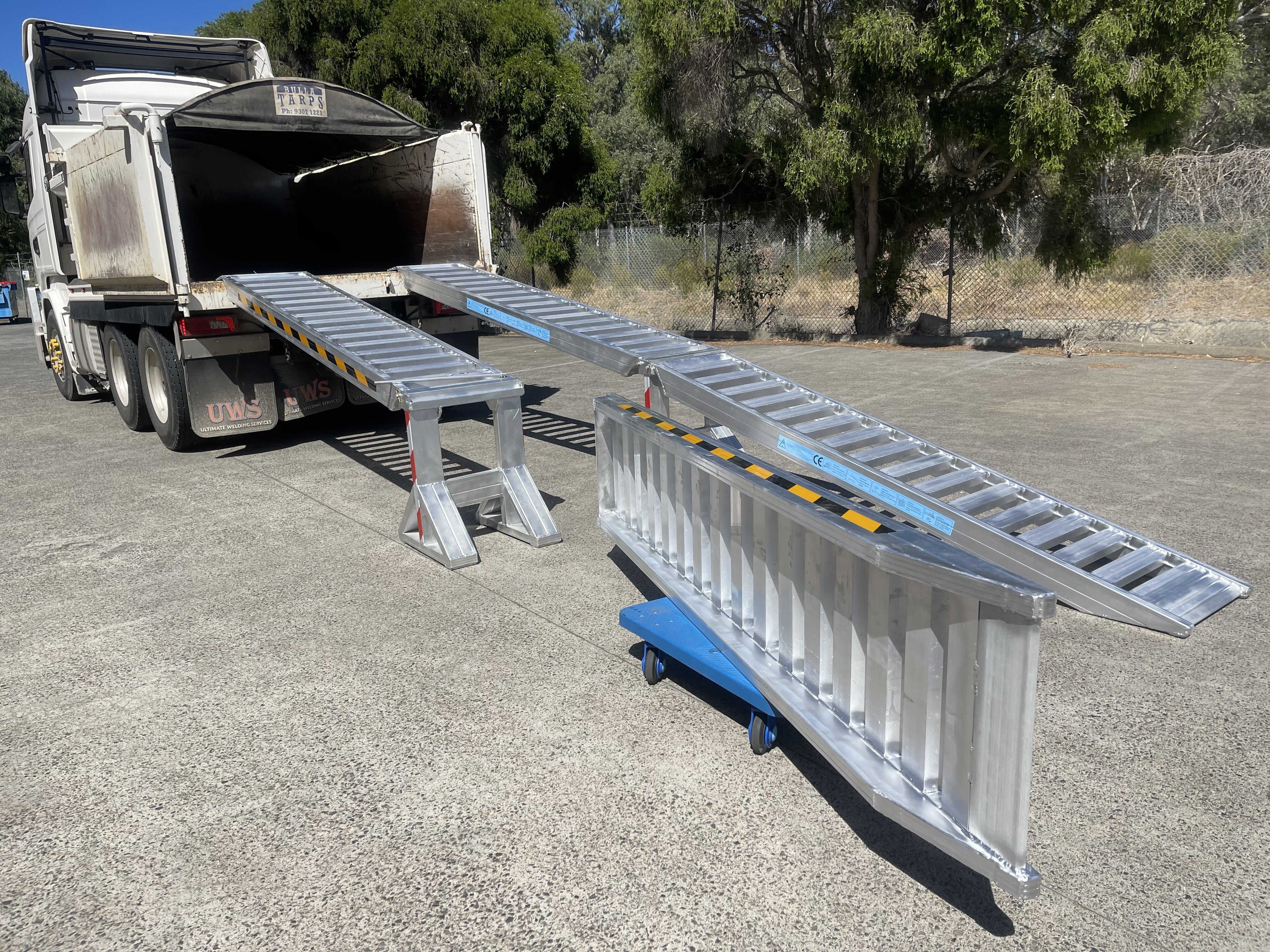

Jetland 9m aluminium loading ramps are made from super strong aluminium making them light-weight and portable. With a maximum load capacity of 5000kg for one pair.
Features：
- Rubber Tyre & Track machinery ramps with Flat rung to make loading smooth.
- Suitable for rubber Tyre & Track machines such as forklifts, loaders, pile drivers, automobiles, etc.
- Not suitable for machinery with steel tracks or rubber pads on steel tracks.
- Never overload ramps. Maximum capacity of each ramp is 2500kg.
Specification:
Item No: JET-I505090
Material: Aluminium
Weight Capacity: 5000kg/pair
Ramp Length: 9m
Ramp Inner Width: 50cm
Ramp Outside Width: 59cm
Beam: 14cm
Product Weight (kg) for a pair: NW/GW 327.6/328
Package Includes:
2 x ramps
**** Ramp images displayed are a representation of the ramp type or style – They may not be the specifications of the ramps listed on this page****
Additional information
| Weight | 328 kg |
|---|---|
| Dimensions | 900 × 59 × 14 cm |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping, Pickup & Warranty
Shipping We can ship Australia wide (free delivery) to your business address (loading facilities required eg forklift) or the nearest depot. Please click on the following link to see our Depot Network to find the closest depot to you, alternatively you may find the closest depot when on the ‘Check Out Cart’ page.
Local pick up: Rear 211 Boundary Road Braeside VIC 3195 Contact Jimmy 0420815988 to arrange collection
Warranty We offer 12 months warranty on our heavy duty loading ramps under Australian Consumer Law. It is imperative that safety and handling procedures are followed – not only for the safety aspect – but improper use and handling will void your warranty.
