JETLAND TFT-5 5FT Aluminium Tri-Fold Motorcycle & ATV Trailer Ramp

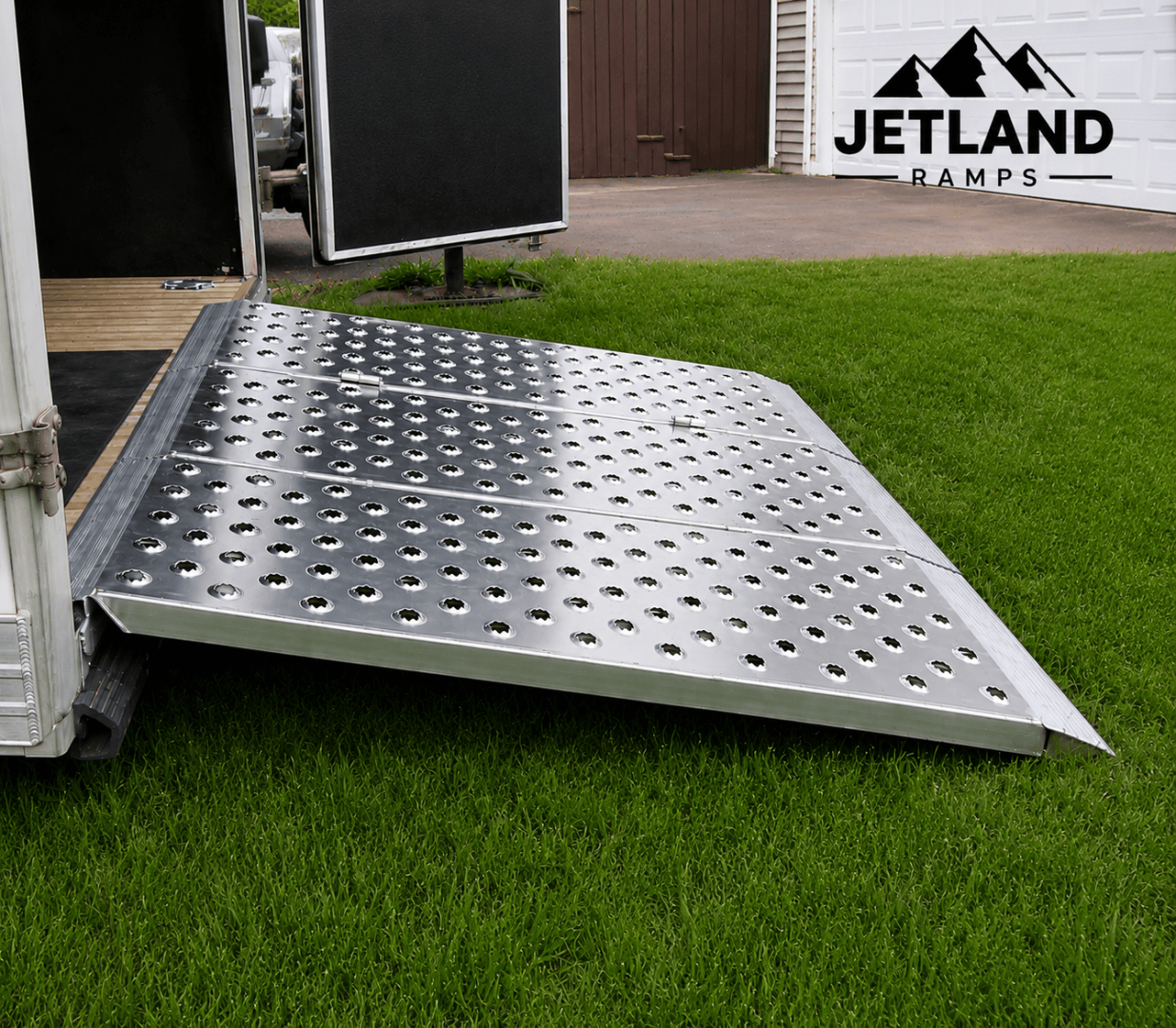

The JETLAND TFT-5 Aluminium Tri-Fold Motorcycle & ATV Trailer Ramp is a heavy-duty, compact loading solution designed for loading motorcycles, ATVs and other suitable equipment onto trailers and other low-height loading surfaces.

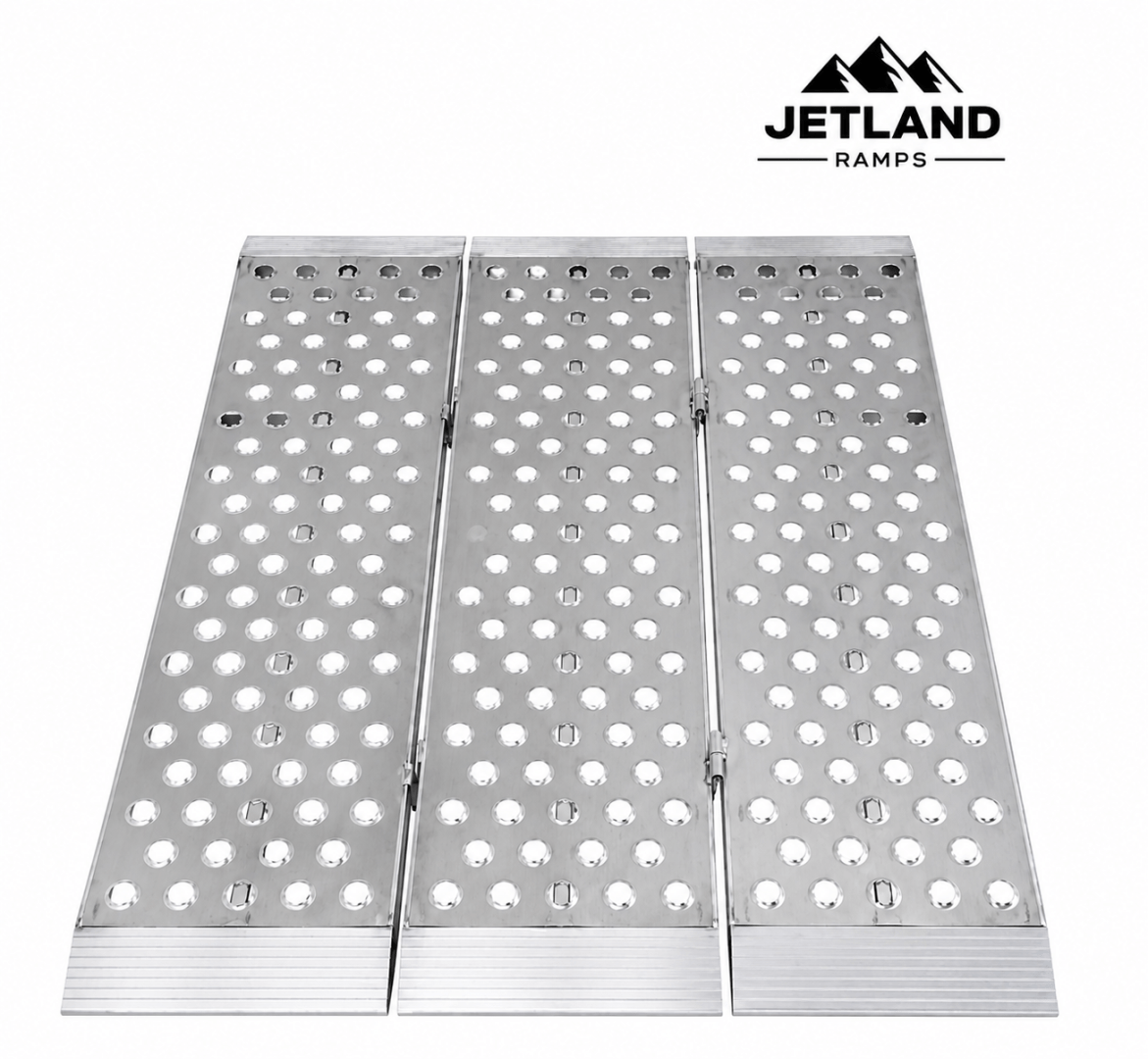

Manufactured from high-strength, lightweight aluminium, the TFT-5 features a wide tri-fold design with a punched plate surface that provides improved traction and grip during loading and unloading.

With a maximum load capacity of 1,360 kg / 3,000 lb, the TFT-5 combines high load capacity with a compact 5FT length. Its wide 60-inch loading surface provides generous space for motorcycles, ATVs and similar equipment.

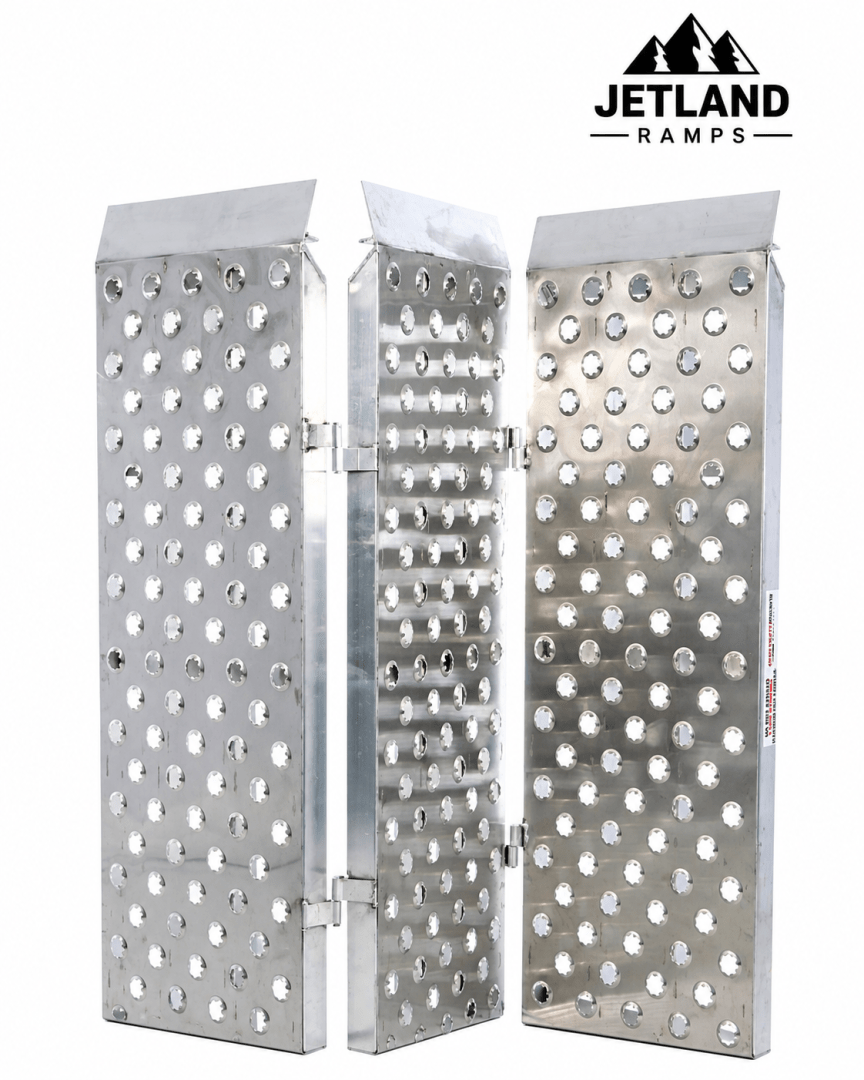

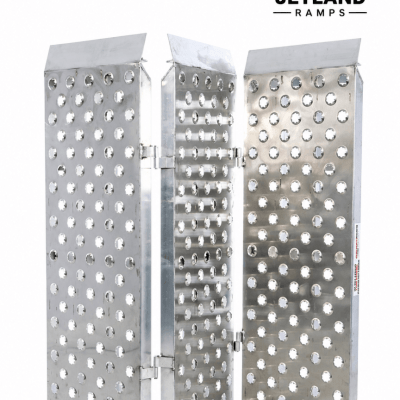

The tri-fold construction allows the ramp to fold down to approximately one-third of its open width for easier transport and storage. A combination plate and hook lip supports the ramp securely against the trailer or tailgate, while rubber padding helps protect the contact surface from scratches and provides additional grip.

Key Features

• High-strength, lightweight aluminium construction
• Maximum load capacity: 1,360 kg / 3,000 lb
• Ramp size: 152 cm × 152 cm (5FT × 60”)
• Wide tri-fold design
• Punched plate surface for improved traction and grip
• Combination plate and hook lip for secure positioning
• Rubber padding helps protect the trailer or tailgate contact surface
• Folds down to approximately one-third of its open width for easier transport and storage
• Suitable for motorcycles, ATVs and other suitable equipment
• Designed primarily for trailers and other low-height loading applications

Specifications

Model: JETLAND TFT-5
Material: Aluminium
Ramp Size: 152 cm × 152 cm (5FT × 60”)
Maximum Capacity: 1,360 kg / 3,000 lb
Net Weight: Approx. 24.5 kg
Gross Weight: Approx. 27.6 kg
Package Size: Approx. 155.5 × 57.5 × 22 cm
Folding Type: Tri-Fold

Important Safety Information

Always ensure the ramp is correctly positioned and securely supported before use. Do not exceed the maximum rated load capacity. Ensure the trailer, vehicle and loading surface are stable and suitable for the intended application before loading or unloading equipment.

**** Ramp images displayed are a representation of the ramp type or style – They may not be the specifications of the ramps listed on this page****
