JETLAND JMRS-8CC6 Aluminium Modular U-Shaped Ramp System

JETLAND JMRS-8CC6 Aluminium Modular U-Shaped Ramp System

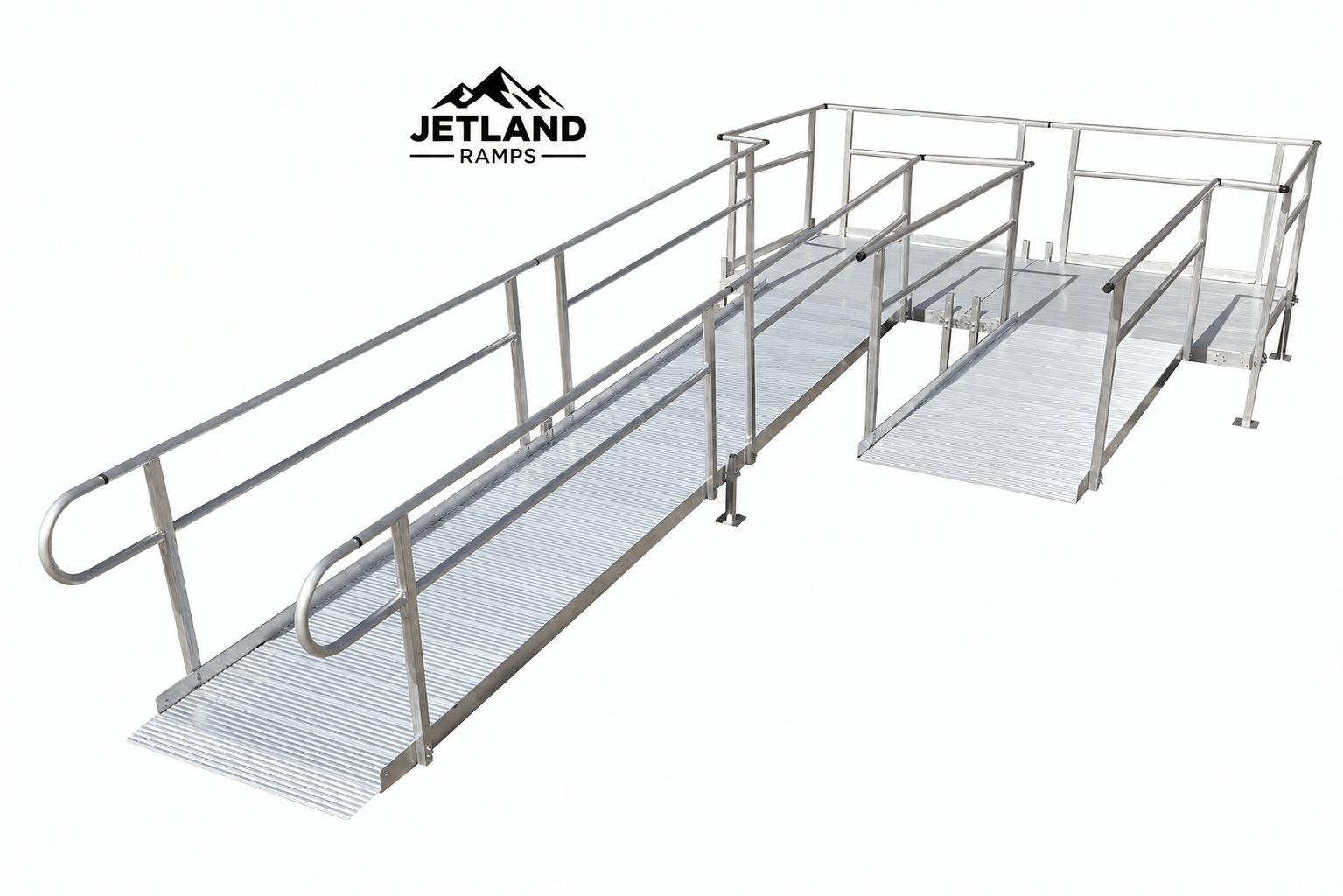

The JETLAND JMRS-8CC6 Aluminium Modular U-Shaped Ramp System is a complete and flexible access solution combining one 8FT aluminium modular ramp, two 5FT × 5FT aluminium modular platforms and one 6FT aluminium modular ramp.

The system is configured in the following sequence:

8FT Ramp → 5FT × 5FT Platform → 5FT × 5FT Platform → 6FT Ramp

The U-shaped configuration allows the access route to make an approximately 180-degree change in direction, making it particularly suitable for locations where a longer straight ramp system cannot be accommodated due to limited available space, doorway position or site layout.

Designed for wheelchair, mobility scooter and pedestrian access, the system provides a strong and practical access solution for residential and commercial applications.

The two intermediate platforms create a spacious level turning area between the two ramp sections, allowing the access route to return in the opposite direction.

Manufactured from durable aluminium, the modular construction allows different ramp lengths, platform sizes and compatible components to be combined or reconfigured according to individual site requirements.

JETLAND Modular Ramp Systems are available with different ramp lengths and different platform sizes. Multiple ramp sections can be connected where additional ramp length is required. Different ramp lengths and platform sizes can be combined to create a suitable access system according to the specific vertical rise, doorway position, available space and site layout.

SYSTEM CONFIGURATION

Model: JMRS-8CC6
Ramp 1: 1 × 8FT Aluminium Modular Ramp
Platform: 2 × 5FT × 5FT Aluminium Modular Platforms
Ramp 2: 1 × 6FT Aluminium Modular Ramp
Configuration: 8FT Ramp → Platform → Platform → 6FT Ramp
Ramp Width: 36” (914mm)
Load Capacity: 454kg (1000lb)
Material: Aluminium
Handrails: Included
Design: U-Shaped Modular Access System
Suitable for: Wheelchairs, mobility scooters and pedestrian access
Applications: Residential and commercial access

The configuration shown on this page is an example modular system. Actual ramp lengths, platform sizes, number of ramp sections, number of platforms and overall system configuration may vary according to individual site requirements.

PRODUCT & SHIPPING INFORMATION

8FT Modular Ramp × 1

Product Weight: 41.3kg
Packed Dimensions: 247 × 95 × 11.5cm
Shipping Weight: 52kg

6FT Modular Ramp × 1

Product Weight: 31.5kg
Packed Dimensions: 186 × 95 × 11.5cm
Shipping Weight: 40kg

5FT × 5FT Modular Platform × 2

Product Weight: 40.3kg each
Packed Dimensions: 157 × 157 × 15cm each
Shipping Weight: 52kg each

Complete System

Total Product Weight: 153.4kg
Total Shipping Weight of Individual Packages: 196kg

The ramp sections and platforms may be consolidated onto a pallet for transportation. Final packed dimensions and shipping weight may vary depending on the packing and freight method.

AUSTRALIAN ACCESSIBILITY RAMP GUIDE

For wheelchair and accessible ramp applications, a 1:14 maximum gradient is commonly used as a design reference under Australian accessibility requirements, including AS 1428.1.

As a general guide, a 1:14 gradient requires approximately 1.4 metres of ramp length for every 100mm of vertical rise.

Every site is different. The required ramp length, platform size, number of ramp sections and platforms, turning arrangement and overall system configuration will depend on factors such as access height, doorway position, building layout, available space and site conditions.

Not sure which configuration you need? Send JETLAND photos of your access area together with the relevant measurements, doorway position and vertical rise. We can assist you in selecting a suitable combination of ramp sections and platforms and provide a quotation based on your specific site requirements.

**** Ramp images displayed are a representation of the ramp type or style – they may not be the specifications of the ramps listed on this page. ****

PRE-ORDER NOTICE

This product is available by pre-order only. Please allow approximately 50 days from the date of order for sea freight and delivery. Delivery times are estimated and may vary depending on shipping schedules.

Shipping We can ship Australia wide (free delivery) to your business address (loading facilities required eg forklift) or the nearest depot. Please click on the following link to see our Depot Network to find the closest depot to you, alternatively you may find the closest depot when on the ‘Check Out Cart’ page.

Local pick up: Rear 211 Boundary Road Braeside VIC 3195 Contact Jimmy 0420815988 to arrange collection

Warranty We offer 12 months warranty on our heavy duty loading ramps under Australian Consumer Law. It is imperative that safety and handling procedures are followed – not only for the safety aspect – but improper use and handling will void your warranty.
