JETLAND JMRS-C8CC88 Aluminium Modular Straight-Entry U-Shaped Ramp System with Top Platform

JETLAND JMRS-C8CC88 Aluminium Modular Straight-Entry U-Shaped Ramp System with Top Platform

The JETLAND JMRS-C8CC88 Aluminium Modular Straight-Entry U-Shaped Ramp System with Top Platform is a large and highly flexible modular access solution combining three 8FT aluminium modular ramps with three 5FT × 5FT aluminium modular platforms.

The system is configured in the following sequence:

5FT × 5FT Platform → 8FT Ramp → 5FT × 5FT Platform → 5FT × 5FT Platform → 8FT Ramp → 8FT Ramp

This U-shaped configuration allows the access route to change direction and continue over an extended distance while maintaining a compact overall footprint. It is particularly suitable for locations where the required ramp length cannot be accommodated in a single straight run.

The top platform provides a level transition area at the entrance, while the two central platforms create a spacious turning area between the ramp sections. The two connected 8FT ramp sections provide an extended ramp run where additional length is required.

Designed for wheelchair, mobility scooter and pedestrian access, the system provides a strong and practical access solution for residential and commercial applications.

Manufactured from durable aluminium, the modular construction allows ramp sections and platforms to be added, removed or reconfigured according to different access heights, available spaces, doorway positions and site layouts.

JETLAND Modular Ramp Systems are available with different ramp lengths and different platform sizes. Multiple ramp sections can be connected to create longer ramp runs where required. This modular design allows the overall system to be configured according to the specific vertical rise, available space and access requirements of each site.

SYSTEM CONFIGURATION

Model: JMRS-C8CC88
Ramps: 3 × 8FT Aluminium Modular Ramps
Platforms: 3 × 5FT × 5FT Aluminium Modular Platforms
Configuration: Platform → 8FT Ramp → Platform → Platform → 8FT Ramp → 8FT Ramp
Ramp Width: 36” (914mm)
Load Capacity: 454kg (1000lb)
Material: Aluminium
Handrails: Included
Design: Straight-Entry U-Shaped Modular Access System with Top Platform
Turning Configuration: Left or Right Layout Available
Suitable for: Wheelchairs, mobility scooters and pedestrian access
Applications: Residential and commercial access

The configuration shown on this page is an example modular system. Actual ramp lengths, platform sizes, number of ramp sections, number of platforms and overall system configuration may vary according to individual site requirements.

PRODUCT & SHIPPING INFORMATION

8FT Modular Ramp × 3

Product Weight: 41.3kg each
Packed Dimensions: 247 × 95 × 11.5cm each
Shipping Weight: 52kg each

5FT × 5FT Modular Platform × 3

Product Weight: 40.3kg each
Packed Dimensions: 157 × 157 × 15cm each
Shipping Weight: 52kg each

COMPLETE SYSTEM

Total Product Weight: 244.8kg
Estimated Consolidated Shipping Size: 247 × 157 × 79.5cm
Total Shipping Weight of Individual Packages: 312kg

The estimated consolidated shipping size is provided as a general reference only. The ramp sections and platforms may be consolidated onto one or more pallets for transportation. Final packed dimensions and shipping weight may vary depending on the packing arrangement and freight method.

AUSTRALIAN ACCESSIBILITY RAMP GUIDE

For wheelchair and accessible ramp applications, a 1:14 maximum gradient is commonly used as a design reference under Australian accessibility requirements, including AS 1428.1.

As a general guide, a 1:14 gradient requires approximately 1.4 metres of ramp length for every 100mm of vertical rise.

Every site is different. The required ramp length, platform size, number of ramp sections and platforms, turning arrangement and overall system configuration will depend on factors such as access height, doorway position, building layout, available space and site conditions.

Not sure which configuration you need? Send JETLAND photos of your access area together with the relevant measurements, doorway position and vertical rise. We can assist you in selecting a suitable combination of ramp sections and platforms and provide a quotation based on your specific site requirements.

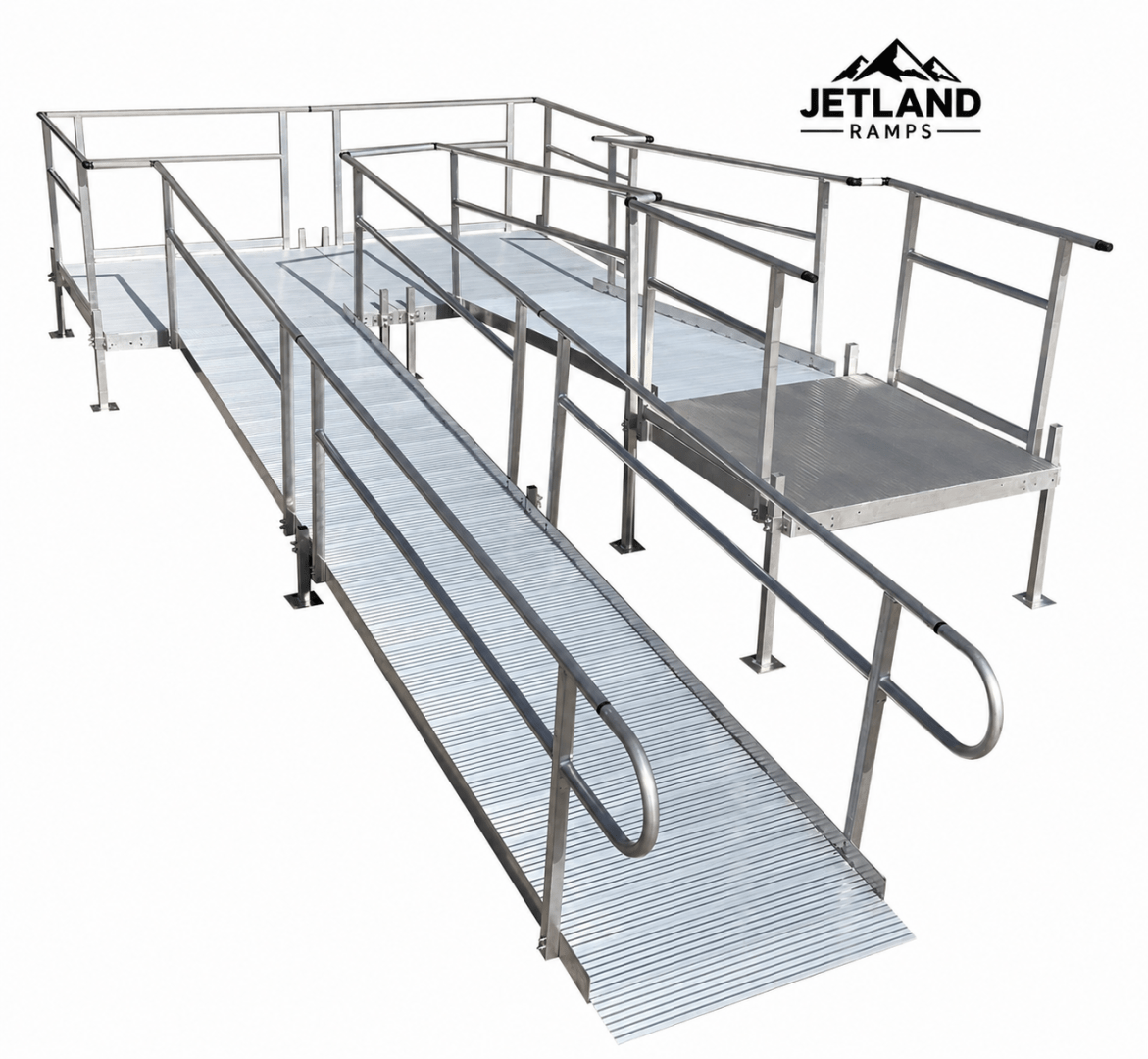

**** Ramp images displayed are a representation of the ramp type or style – they may not be the specifications of the ramps listed on this page. ****

PRE-ORDER NOTICE

This product is available by pre-order only. Please allow approximately 50 days from the date of order for sea freight and delivery. Delivery times are estimated and may vary depending on shipping schedules.

Shipping We can ship Australia wide (free delivery) to your business address (loading facilities required eg forklift) or the nearest depot. Please click on the following link to see our Depot Network to find the closest depot to you, alternatively you may find the closest depot when on the ‘Check Out Cart’ page.

Local pick up: Rear 211 Boundary Road Braeside VIC 3195 Contact Jimmy 0420815988 to arrange collection

Warranty We offer 12 months warranty on our heavy duty loading ramps under Australian Consumer Law. It is imperative that safety and handling procedures are followed – not only for the safety aspect – but improper use and handling will void your warranty.
