JETLAND JMRS-C8L/R Aluminium Modular Ramp System – L/R Side Entry

JETLAND JMRS-C8L/R Aluminium Modular Ramp System – L/R Side Entry

The JETLAND JMRS-C8L/R Aluminium Modular Ramp System is a complete and flexible access solution combining one 8FT aluminium modular ramp with one 5FT × 5FT aluminium modular platform, configured for left or right side-entry access.

Designed for wheelchair, mobility scooter and pedestrian access, the system provides a strong and practical solution for residential and commercial applications where a straight-entry configuration may not be suitable.

The system can be configured for either left-side or right-side entry, depending on the doorway position, access direction and individual site requirements.

Manufactured from durable aluminium, the modular construction allows additional ramp sections, platforms and compatible components to be added or reconfigured to suit different access heights, building layouts, available spaces and site conditions.

JETLAND Modular Ramp Systems are available with different ramp lengths and different platform sizes. Multiple ramp sections can also be connected where additional ramp length is required. This allows ramp sections and platforms to be combined into a suitable configuration according to the specific access height, available space and site layout.

SYSTEM CONFIGURATION

Model: JMRS-C8L/R
Ramp: 1 × 8FT Aluminium Modular Ramp
Platform: 1 × 5FT × 5FT Aluminium Modular Platform
Ramp Width: 36” (914mm)
Load Capacity: 454kg (1000lb)
Material: Aluminium
Handrails: Included
Configuration: Left or Right Side Entry
Suitable for: Wheelchairs, mobility scooters and pedestrian access
Applications: Residential and commercial access

The configuration and price shown on this page apply to the system displayed. Actual ramp length, platform size, number of ramp sections and overall system configuration may vary according to individual site requirements.

Left or right side-entry configurations are available. Please confirm the doorway position and required access direction with JETLAND when requesting your configuration.

PRODUCT & SHIPPING INFORMATION

8FT Modular Ramp

Product Weight: 41.3kg
Packed Dimensions: 247 × 95 × 11.5cm
Shipping Weight: 52kg

5FT × 5FT Modular Platform

Product Weight: 40.3kg
Packed Dimensions: 157 × 157 × 15cm
Shipping Weight: 52kg

Complete System

Total Product Weight: 81.6kg
Estimated Consolidated Shipping Size: 247 × 157 × 34.5cm
Estimated Shipping Weight: Approx. 110kg

The ramp and platform may be consolidated onto a pallet for transportation. Final packed dimensions and shipping weight may vary slightly depending on the packing and freight method.

AUSTRALIAN ACCESSIBILITY RAMP GUIDE

For wheelchair and accessible ramp applications, a 1:14 maximum gradient is commonly used as a design reference under Australian accessibility requirements, including AS 1428.1.

As a general guide, a 1:14 gradient requires approximately 1.4 metres of ramp length for every 100mm of vertical rise.

Every site is different. The required ramp length, platform size, number of ramp sections and platforms, and overall system configuration will depend on factors such as access height, doorway position, access direction, building layout, available space and site conditions.

Not sure which configuration you need? Send JETLAND photos of your access area together with the relevant measurements and vertical rise. We can assist you in selecting a suitable combination of ramp sections and platforms and provide a quotation based on your specific site requirements.

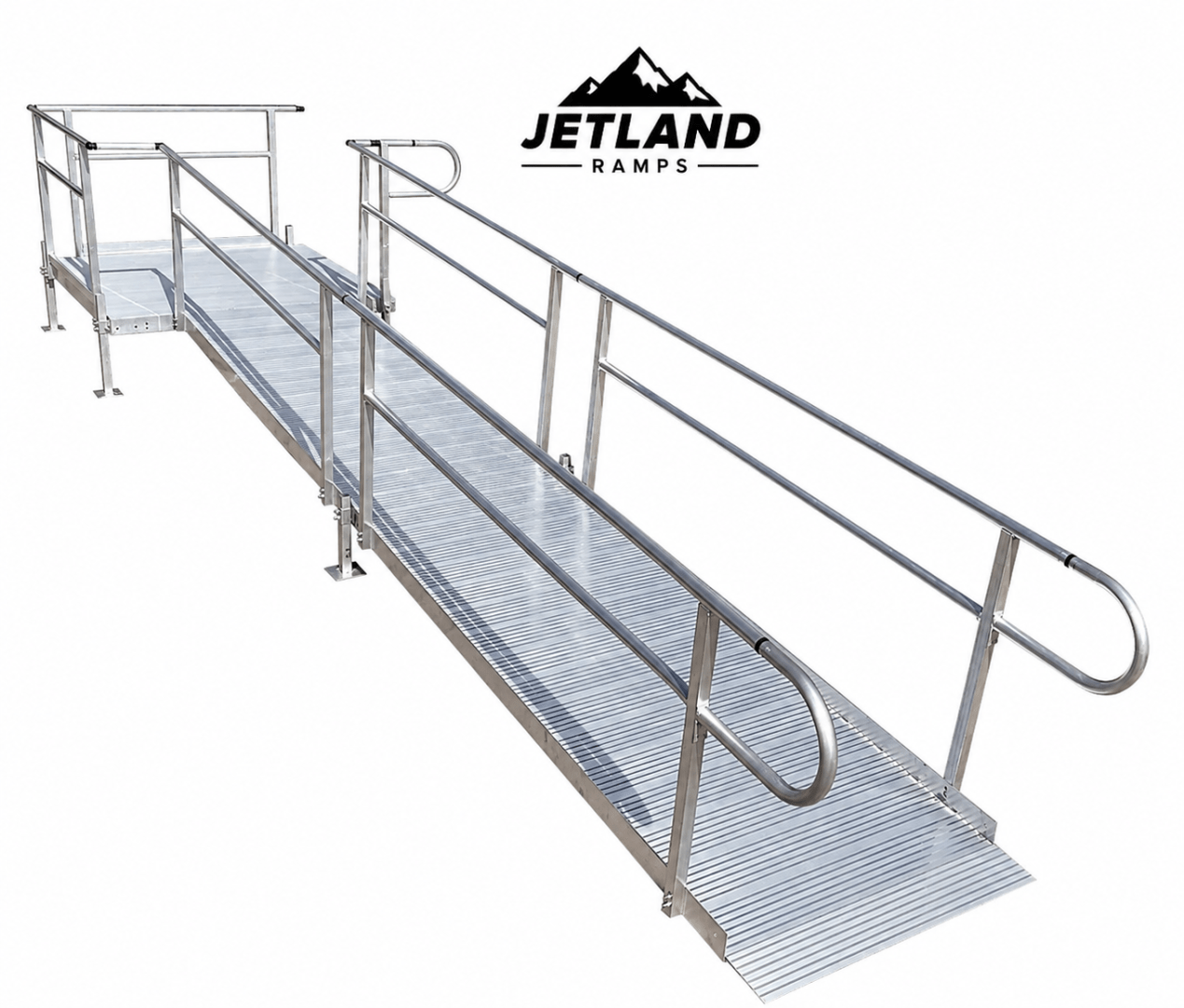

**** Ramp images displayed are a representation of the ramp type or style – they may not be the specifications of the ramps listed on this page. ****

PRE-ORDER NOTICE

This product is available by pre-order only. Please allow approximately 50 days from the date of order for sea freight and delivery. Delivery times are estimated and may vary depending on shipping schedules.

Shipping We can ship Australia wide (free delivery) to your business address (loading facilities required eg forklift) or the nearest depot. Please click on the following link to see our Depot Network to find the closest depot to you, alternatively you may find the closest depot when on the ‘Check Out Cart’ page.

Local pick up: Rear 211 Boundary Road Braeside VIC 3195 Contact Jimmy 0420815988 to arrange collection

Warranty We offer 12 months warranty on our heavy duty loading ramps under Australian Consumer Law. It is imperative that safety and handling procedures are followed – not only for the safety aspect – but improper use and handling will void your warranty.
