JETLAND JMRS-8C8 Aluminium Modular L-Shaped Ramp System

JETLAND JMRS-8C8 Aluminium Modular L-Shaped Ramp System

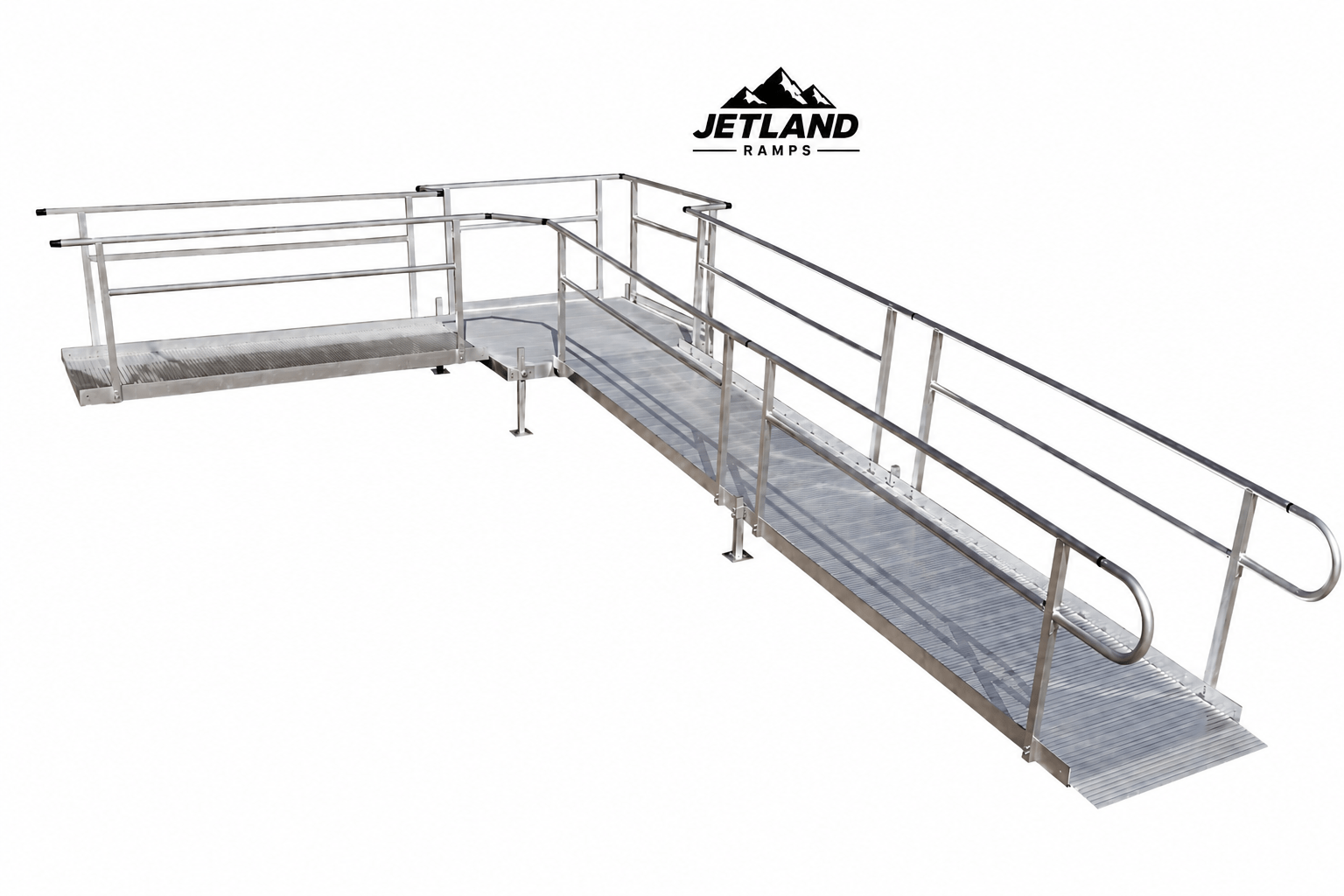

The JETLAND JMRS-8C8 Aluminium Modular L-Shaped Ramp System is a complete and flexible access solution combining two 8FT aluminium modular ramps with one 5FT × 5FT aluminium modular platform, creating an L-shaped access configuration.

Designed for wheelchair, mobility scooter and pedestrian access, the system provides a strong and practical solution for residential and commercial applications where a change in direction is required due to doorway position, building layout, available space or site conditions.

The central modular platform allows the access route to change direction between the two ramp sections. The system can be configured for left-hand or right-hand turning layouts according to individual site requirements.

Manufactured from durable aluminium, the modular construction allows additional ramp sections, platforms and compatible components to be added or reconfigured to suit different access heights, building layouts, available spaces and site conditions.

JETLAND Modular Ramp Systems are available with different ramp lengths and different platform sizes. Multiple ramp sections can be connected where additional ramp length is required. This allows ramp sections and platforms to be combined into a suitable configuration according to the specific access height, available space and site layout.

SYSTEM CONFIGURATION

Model: JMRS-8C8
Ramp: 2 × 8FT Aluminium Modular Ramps
Platform: 1 × 5FT × 5FT Aluminium Modular Platform
Configuration: 8FT Ramp → Platform → 8FT Ramp
Ramp Width: 36” (914mm)
Load Capacity: 454kg (1000lb)
Material: Aluminium
Handrails: Included
Design: L-Shaped Modular Access System
Turning Direction: Left or Right Configuration Available
Suitable for: Wheelchairs, mobility scooters and pedestrian access
Applications: Residential and commercial access

The configuration shown on this page applies to the displayed system. Actual ramp length, platform size, number of ramp sections, number of platforms and overall system configuration may vary according to individual site requirements.

PRODUCT & SHIPPING INFORMATION

8FT Modular Ramp × 2

Product Weight: 41.3kg each
Packed Dimensions: 247 × 95 × 11.5cm each
Shipping Weight: 52kg each

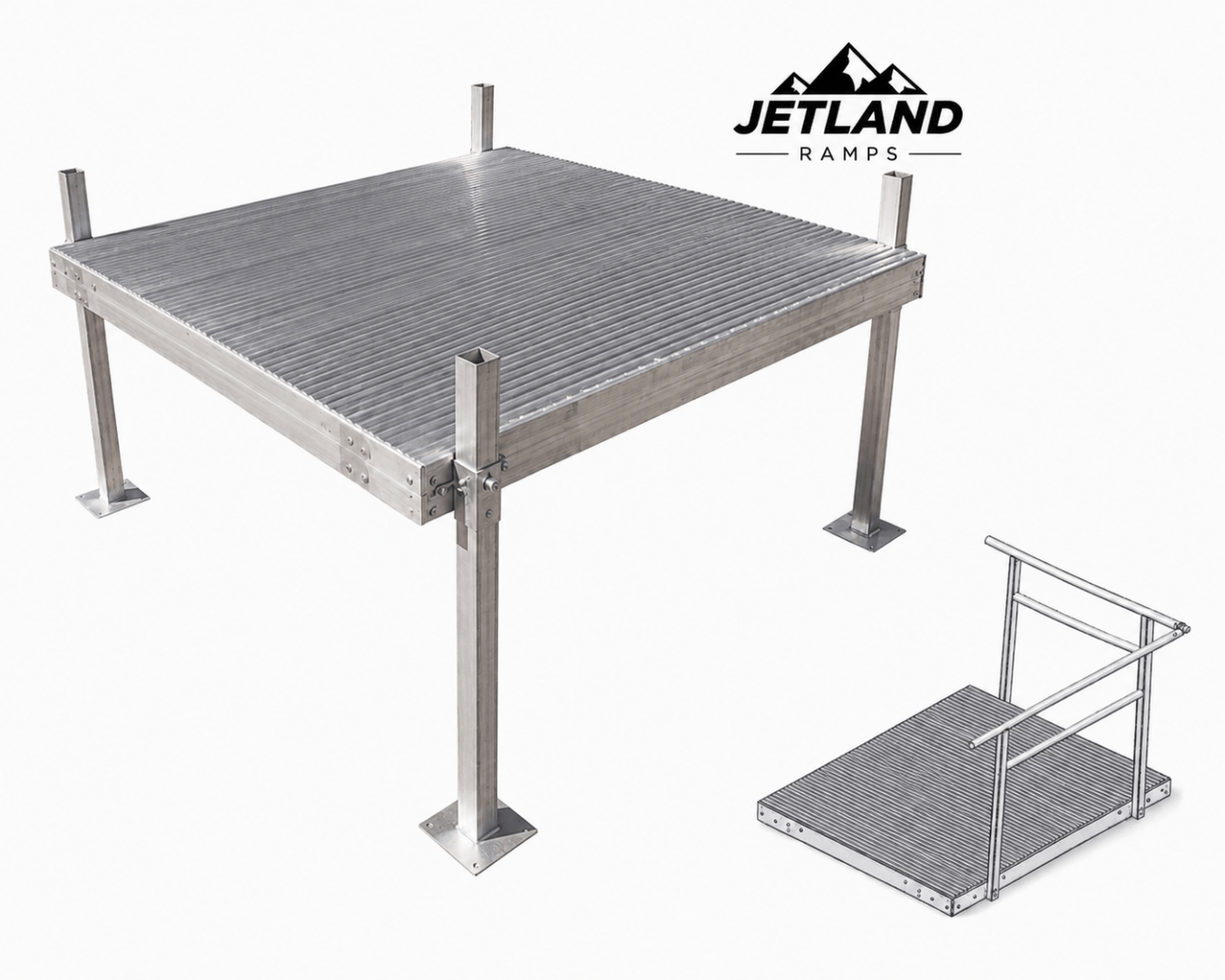

5FT × 5FT Modular Platform × 1

Product Weight: 40.3kg
Packed Dimensions: 157 × 157 × 15cm
Shipping Weight: 52kg

Complete System

Total Product Weight: 122.9kg
Estimated Consolidated Shipping Size: 247 × 157 × 46cm
Estimated Shipping Weight: Approx. 165kg

The ramp sections and platform may be consolidated onto a pallet for transportation. Final packed dimensions and shipping weight may vary slightly depending on the packing and freight method.

AUSTRALIAN ACCESSIBILITY RAMP GUIDE

For wheelchair and accessible ramp applications, a 1:14 maximum gradient is commonly used as a design reference under Australian accessibility requirements, including AS 1428.1.

As a general guide, a 1:14 gradient requires approximately 1.4 metres of ramp length for every 100mm of vertical rise.

Every site is different. The required ramp length, platform size, number of ramp sections and platforms, turning direction and overall system configuration will depend on factors such as access height, doorway position, building layout, available space and site conditions.

Not sure which configuration you need? Send JETLAND photos of your access area together with the relevant measurements and vertical rise. We can assist you in selecting a suitable combination of ramp sections and platforms and provide a quotation based on your specific site requirements.

**** Ramp images displayed are a representation of the ramp type or style – they may not be the specifications of the ramps listed on this page. ****

PRE-ORDER NOTICE

This product is available by pre-order only. Please allow approximately 50 days from the date of order for sea freight and delivery. Delivery times are estimated and may vary depending on shipping schedules.

Shipping We can ship Australia wide (free delivery) to your business address (loading facilities required eg forklift) or the nearest depot. Please click on the following link to see our Depot Network to find the closest depot to you, alternatively you may find the closest depot when on the ‘Check Out Cart’ page.

Local pick up: Rear 211 Boundary Road Braeside VIC 3195 Contact Jimmy 0420815988 to arrange collection

Warranty We offer 12 months warranty on our heavy duty loading ramps under Australian Consumer Law. It is imperative that safety and handling procedures are followed – not only for the safety aspect – but improper use and handling will void your warranty.
